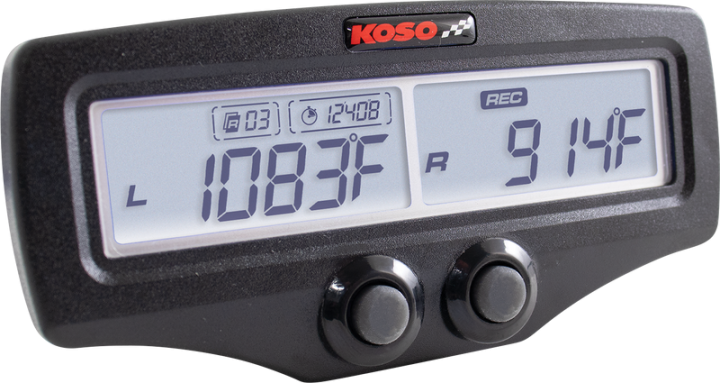

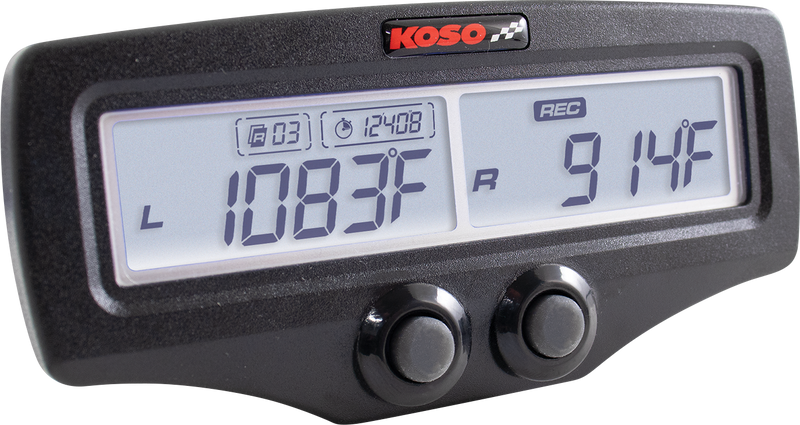

KOSO NORTH AMERICA EGT-02 Standard Dual Sensor BA006000

Description

• Dual exhaust gas temperature sensor
• Allows rider to tune engine more precisely and keep a record of your previous runs (up to 50)
• Settable warning for each cylinder gives the opportunity to set a maximum temperature warning of up to 2,100 °F
• Red flashing of the screen makes it very easy to see if something is going wrong with the engine (This tool could save motor)
• Effective temperature range of 14°F – 140°F (-10°C – 60°C)

Specifications (R= Range U=Unit)

• Digital EGT temperature A/B
  R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
  U: 1 °F or °C (alternative)
• Over EGT temperature warning
  R: 392 ~ 2,100 °F (200 ~ 1,200 °C)
  U: 1 °F (°C)
• Max EGT temp. record
  R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
  U: 1 °F (°C)

Volt meter
R: DC 0.8 ~ 18 V | U: DC 0.1 V

• Recording time
  R: 99’59’’99 seconds | TR: approx 3.18 Hr

Play mode speed
1 x play / pause | 3 x play / pause
1/3 x play / pause | 1 x rewind / pause
