Graves adjustable rearsets R3 2015-2023 RSY-15R3-KAF

Description

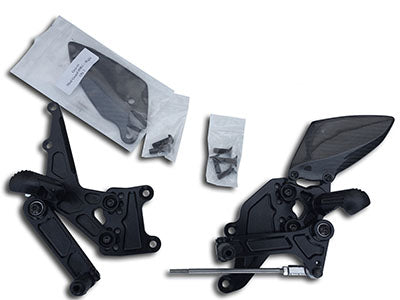

Graves Adjustable Yamaha R3 Rearsets. These motorcycle rearsets for the 15-22 R3 feature billet aluminum construction, M1-style footpegs, double roller bearings in the brake + shifter pivots and carbon fiber heel guards. Includes shift rod pictured. These adjustable rearsets feature the ability to fine tune your Yamaha R3's peg height to the optimal height for better ground clearance and rider comfort.

• Graves Motorsports unique adjustable M1-style footpegs offer superior grip via the large CNC’ed "teeth" and comfort due to its large contact patch and ability to be rotated to any desired angle.
• The folding lever tips feature a high grip, rubber cover ensuring positive grip and feel when shifting and braking.
• The carbon fiber heel guards are designed to be functional as well as look great. The sturdy, light weight construction ensure they will last.
• The R3 Rearsets are up and back from the stock location.
• The lowest and most forward location is up 56mm and back 12mm
• The highest and most the peg can go back is up 80mm and back 18mm

Rider can select from either reverse or standard shift pattern by rotating the stock shift knuckle on the shift shaft. Does not include return spring (shown as optional purchase).

Fitment: Yamaha R3 2015-2023
